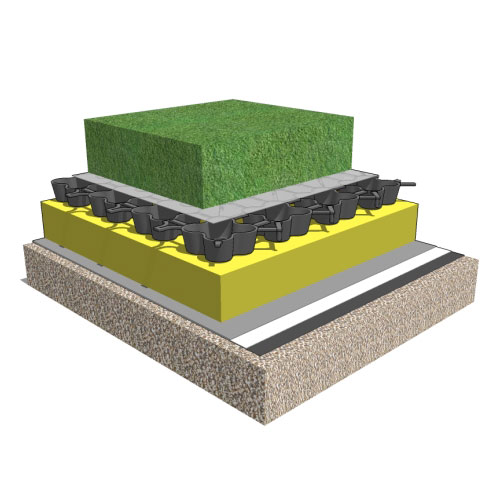

Playground Drainage With AirDrain GeoCell
AirDrain with its 100% vertical drainage and 92% air void is unmatched by any other drainage product on the market. By raising the entire profile off the subbase, creating a 1” air void and bringing gravity into play this allows the area to dry quickly and efficiently. The result is a more stable surface area and consistent HIC across the project, all but eliminating infill migration and inconsistent HIC across the playground (which can drastically effect the safety of the project putting owners in an extreme liability risk scenario).
AirDrain’s strength and durability allow it to be used under multiple turf replacements on the project. In a cost value and performance proposition there is only one choice, AirDrain!
1.
Grass Pavers: Installation Instructions
2.
AirDrain for Synthetic Turf Playground 6ft. Fall Height ASTM Tested No Infill Solution
3.
AirDrain for Synthetic Turf Playground 9ft. Fall Height ASTM Tested No Infill Solution
4.
Synthetic Turf Drainage Truck and Freight Loading Layout
5.
Synthetic Turf Drainage Cross Section
6.
Synthetic Turf Drainage Detail
7.
Synthetic Turf Drainage Field Edge Detail
8.
Playground Drainage with Rubber Mulch
9.
Playground Drainage with Wood Mulch
10.
Playground Drainage with Wood Chips
11.
Airdrain Playground with Pad Above Grid
12.
Airdrain Playground with Pad Below Grid
13.
AirDrain: Transmissivity (ASTM D 4716 and ISO 12958)
