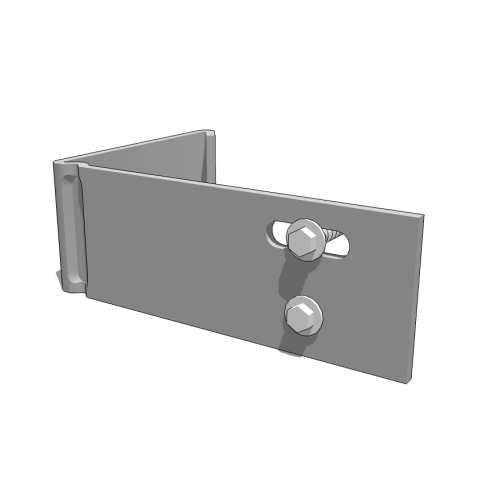

5133X Snap Clip
Used for mounting panels in freestanding, flush applications – snaps onto top, bottom or sides of panels and is field screwed to structural supports. Requires access to one side of panel only for installation. Two screws at each clip.
Materials: 10 gauge galvanized steel
Size: 1 3/4" x 3 1/4" x 5" with 1/4" x 1 1/2" slot and 1/4" dia. hole
Finish: powder coated to match panel color
1.
Greenscreen: 5133X Mounting Clip
2.
Trellis: Vine Planting Detail - Wall Mounted Application
3.
Trellis Trim Connection (5104): Post Mounted Application, Plan View
4.
Trellis Trim Connection (5104): Wall Mounted Application, Plan View
5.
Snap Clip Attachment (5133X): Post Mounted Application
6.
Freestanding Trellis Fence: Vertical Panel Truss - Post Mounted Application with Snap Clip Attachment (5133X)
7.
Freestanding Trellis Fence: Horizontal Panel Truss - Post Mounted Application with Snap Clip Attachment (5133X)
